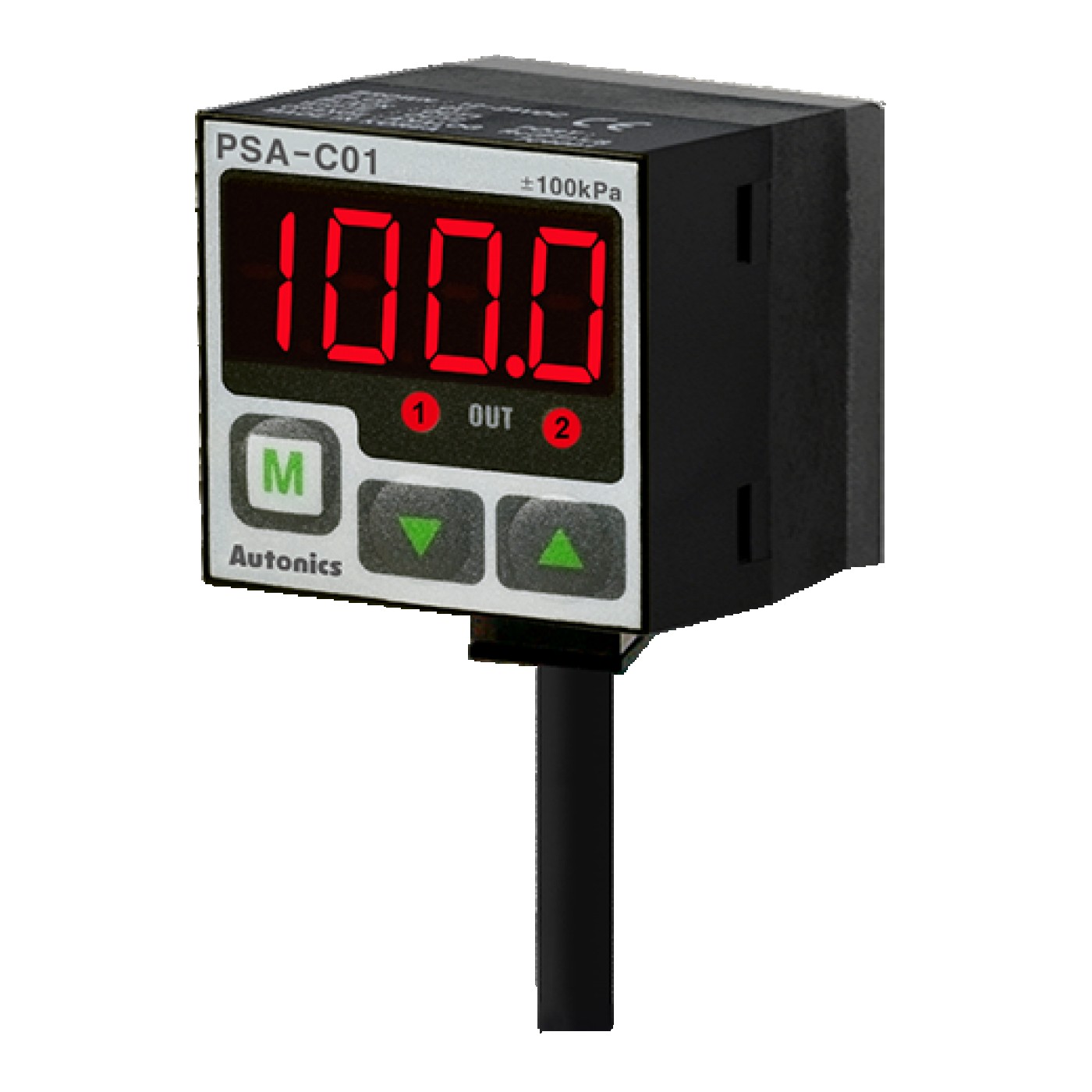

PRESSURE SENSOR
PSA-C01-RC1/8
Made in Korea
| Rated pressure range | -100.0 to 100.0kPa |
|---|
| Option input/output | Voltage(1-5VDC  ) output |
|---|
- Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
- Pressure port direction : Rear fitting(3-direction)
- Pressure port : Rc(PT)1/8
- Connection type : Cable type(cable type cable: 2m)
- Pressure type : Compound pressure
- Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
- Current consumption : Max. 50mA
- Protection structure : IP40
