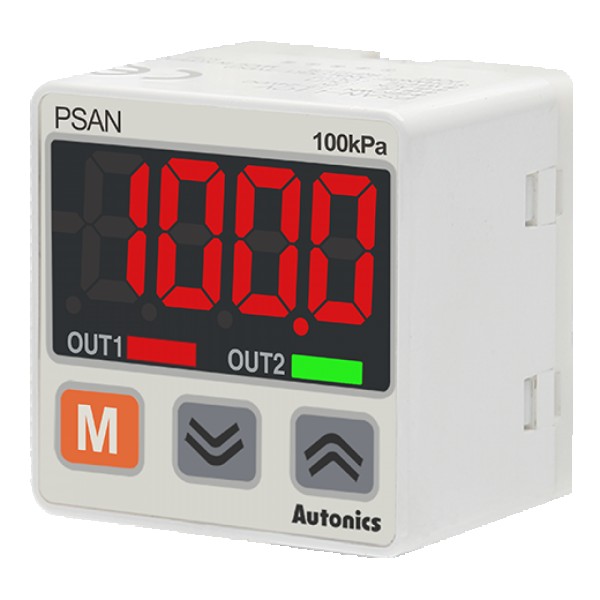

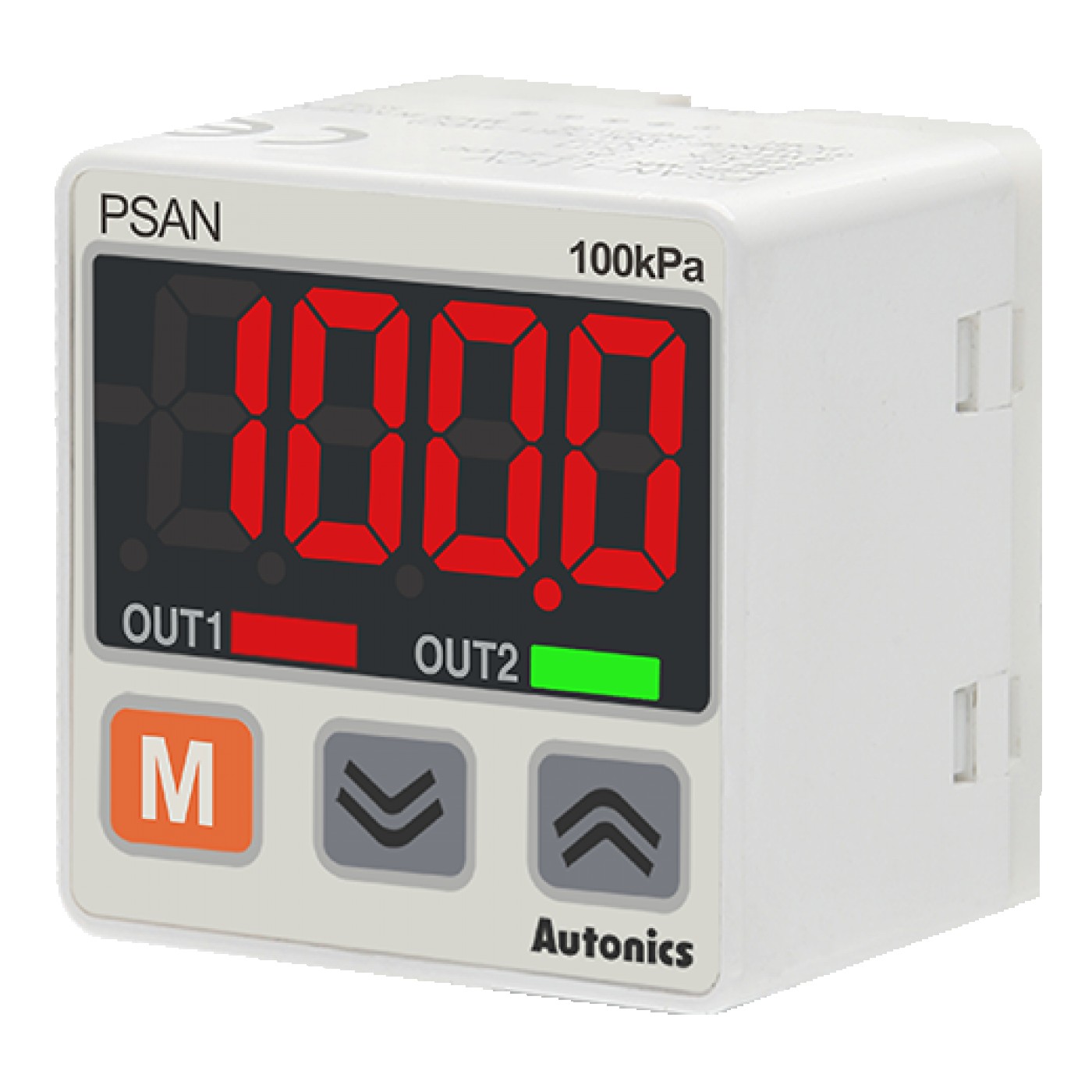

PRESSURE SENSOR
PSAN-01CPA-RC1/8
Made in Korea
| Rated pressure range |
0.0 to 100.0kPa |
|---|
| Option input/output | Current output(DC4-20mA) |
|---|
- Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
- Pressure port direction : Rear fitting
- Pressure port : Rc1/8
- Connection type : Connector type(connector type cable: 2m)
- Pressure type : Standard pressure
- Control output_PNP open collector : PNP open collector
- Power supply : 12-24VDC
±10%(ripple P-P: max. 10%) - Current consumption : Voltage output type: Max. 50mA
Current output type: Max. 75mA - Protection structure : IP40
